Ultrasonic Scalers EASYINSMILE ULTRASONIC SCALER EW3 LED WITH WATER BOTTLE COMPATIBLE WITH EMS/WOODPECKER-UDS ULTRASONIC SCALER

EASYINSMILE ULTRASONIC SCALER EW3 LED WITH WATER BOTTLE COMPATIBLE WITH EMS/WOODPECKER-UDS ULTRASONIC SCALER

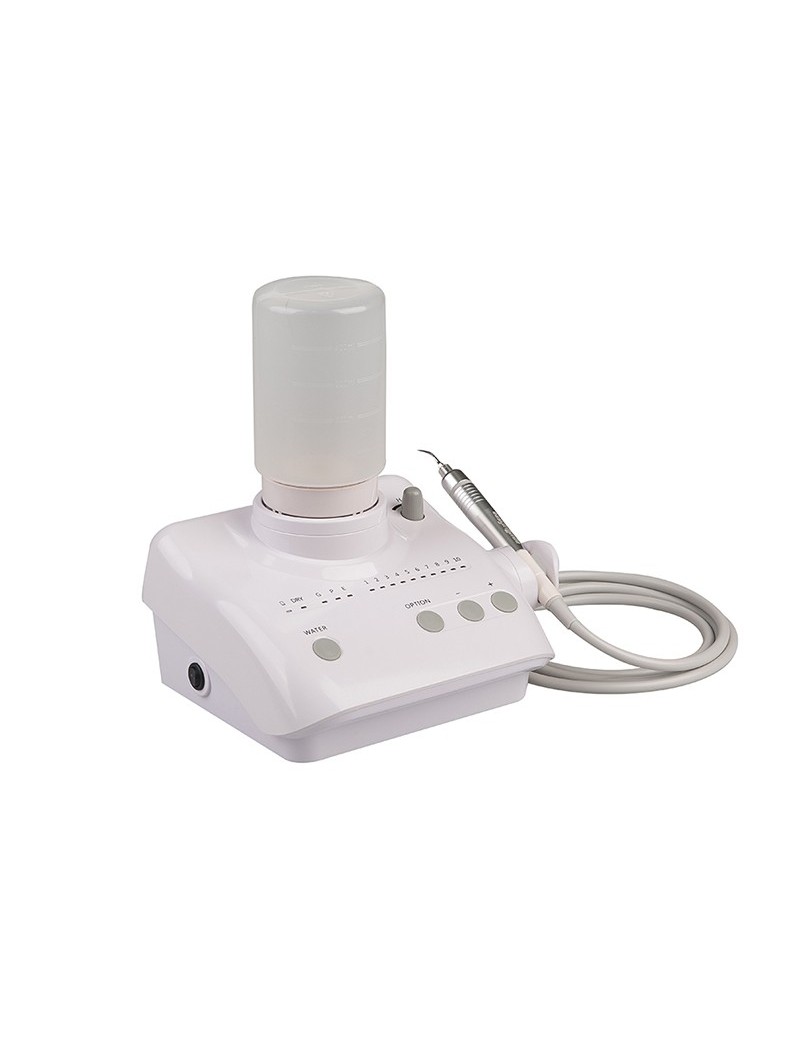

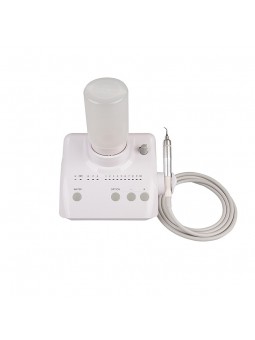

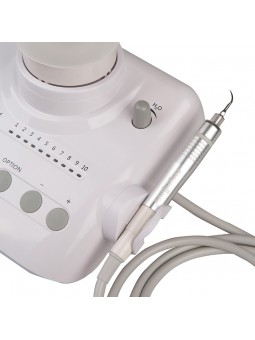

Easyinsmile Ultrasonic scaler EW3 LED is used for the dental calculus elimination and root canal treatment.It has metal handpiece with LED autoclavable.

The new product EW3 LED ultrasonic scaler has scaling, perio, endo and auto-water supply functions with the following features:

1.With auto-water supply function , easier operation .
2.The inner water pipe is made from antiseptic material, clinical fluids, such as hydrogen peroxide,
chlorhexidine and sodium Hypochlorite, etc, can be used perfectly under the mode of auto-water supply system so that the performance of perio and endo is improved dramatically.
3. The handpiece is detachable and can be autoclaved to the temperature of 135℃ and the pressure of 0.22MPa.
4. Automatic frequency tracking ensures that the machine always works on the best frequency and performs more steadily.
5. Controlled by PC, easy operation and more efficient for scaling. These featurs make SK-D1 become a new generation product is the world dental market.

Pay attention to its Three Highlight Features!

No.1 It uses voltage transformer rather than AC adapter to avoid the feeling of pain when scaling!
No.2 The main unit uses fireproof material.
No.3 The autowater supply system adapts diaphragm pump, which will be more durable than peristaltic pump.

Technical specification:

1.Voltage Transformer (please leave a message about which type you need, 110v or 220v)
2.Main unit input:24V~ 1.3A
3.Output primary tip vibration excursion:≤100m
4.Output half-excursion force:<2N
5.Output tip vibration frequency:28kHz±35Hz
6.Output power:3W to 20W
7.Main unit fuse:T1.6AL 250V
8.Adapter fuse:T0.5AL 250V
9.Weight of main unit:1.17g
10.Weight of adapter:1.2kg
11.Operating mode:Continuous operation
12.Type of protection against electric shock:Class II equipment
13.Degree of protection against electric shock:Type BF applied part
14.Degree of protection against harmful ingress of water:Ordinary equipment
15.Protection degree against water(used on the foot switch):IPX1
16.Applied part of the equipment:handpiece and tip
17.Degree of safety of application in the presence of a Flammable Anaesthetic Mixture with air or with Oxygen or Nitrous Oxide:
Equipment not suitable for being used in the presence of a flammable anaesthetic mixture with air or with oxygen or nitrous oxide.

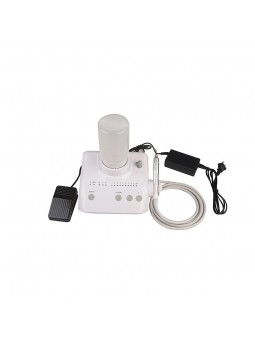

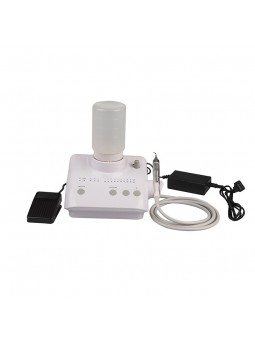

Easyinsmile EW3 LED Packing list :
1. Main unit

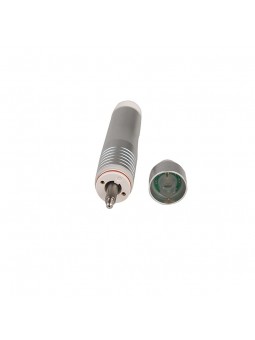

2. Detachable handpiece metal LED
3. Adapter of power supply
4. Foot Switch
5. Scaling tip G1 G2 G3 G4 P1 fit EMS Woodpecker
6. Torque wrench
7. 2 * Waterproof “O” ring
8. Packing list
9. Instruction manual
10. Warranty card
11. Reservoir (350 ml )
12. Reservoir (500 ml )

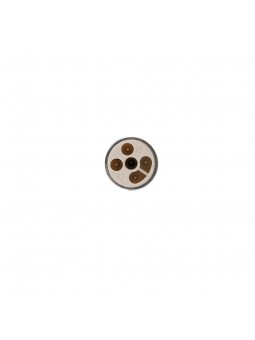

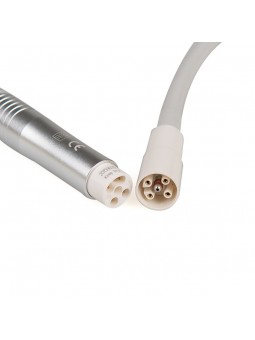

Screw connection or coupling of its Handpiece, tube, and scaler tips is compatible with other Brands like EMS Woodpecker, etc.
